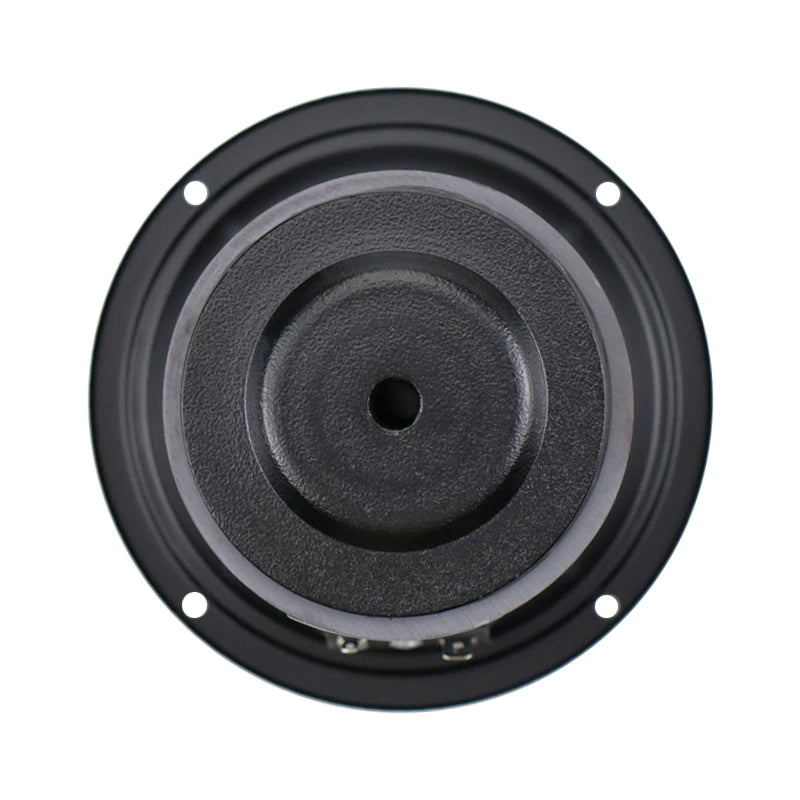

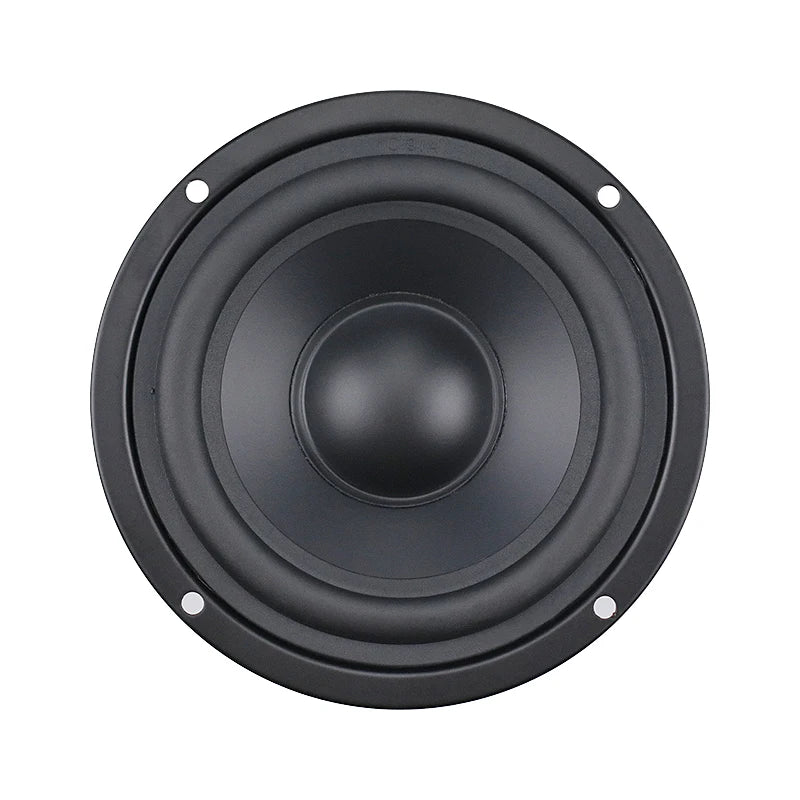

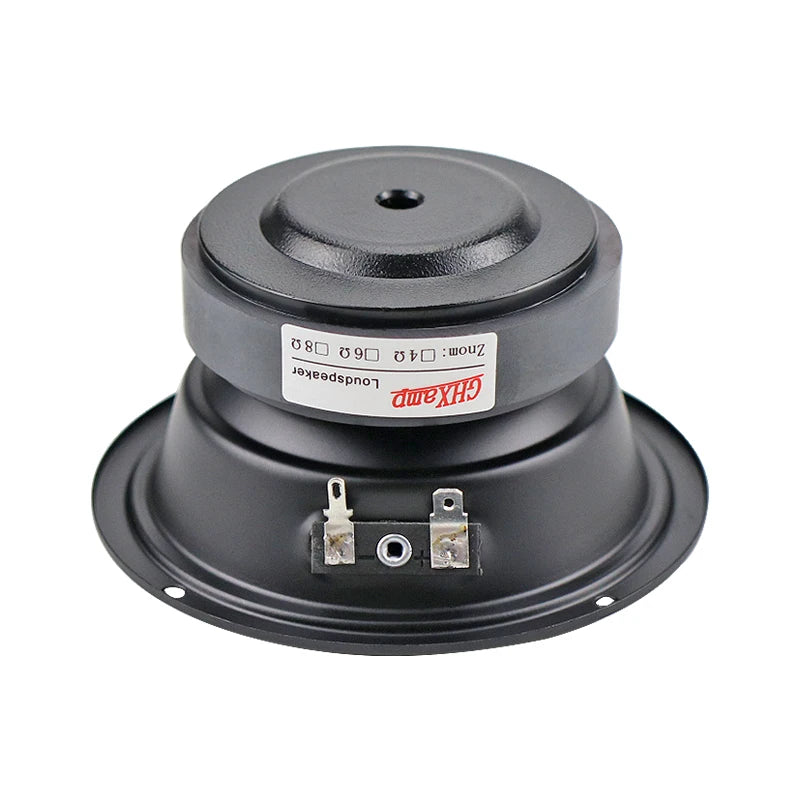

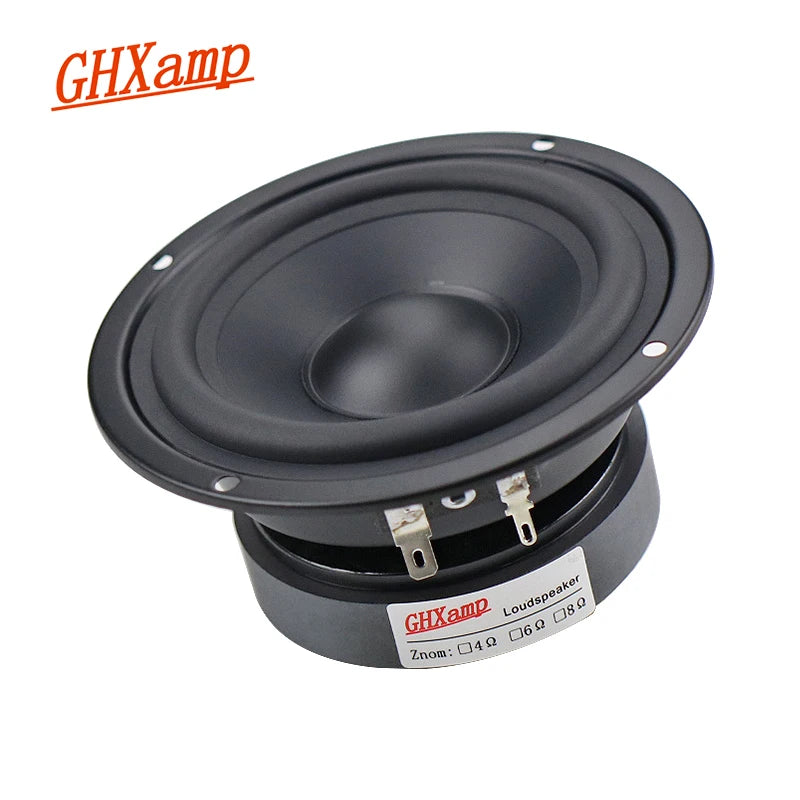

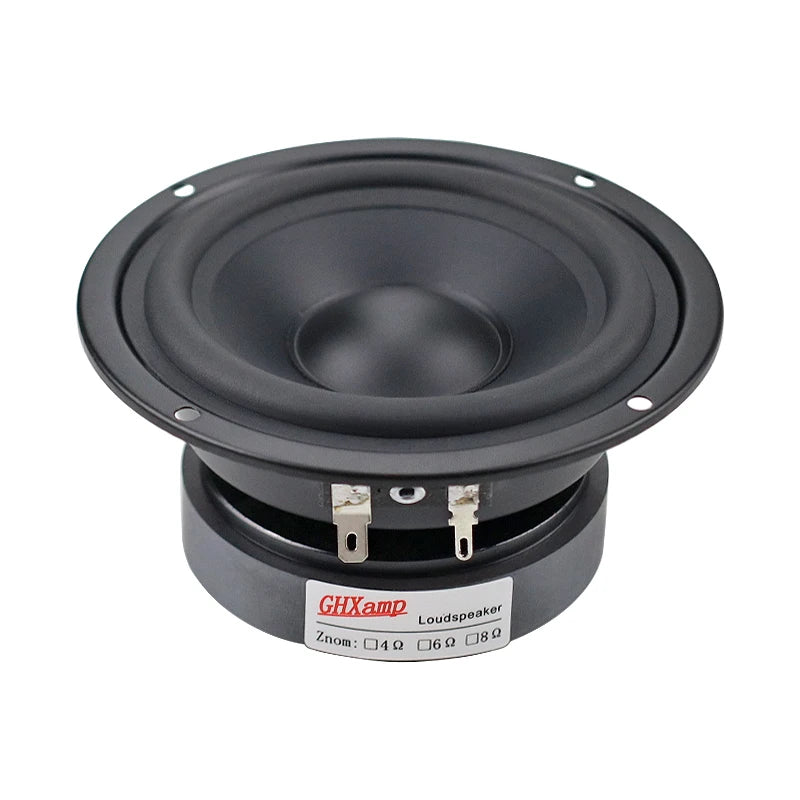

Pure Midrange Speaker Unit Hifi 4 INCH 115MM 80W Alto Speaker Mediant Home MID Unit Rubber Side Matte Coated Paper DIY 1PCS
€45,99
Angebotspreis
€45,99
Normaler Preis
Zu Produktinformationen springen
Pure Midrange Speaker Unit Hifi 4 INCH 115MM 80W Alto Speaker Mediant Home MID Unit Rubber Side Matte Coated Paper DIY 1PCS
€45,99
Angebotspreis
€45,99
Normaler Preis
Tip: This Mid Speaker DC Resistance about 5.2ohm, Impedance is 8OHM，Please be aware that。Thanks
Brand:GHXAMP, ,Price for 1pc.
1.Speaker with Matte coated paper tray, rubber speaker side, sound thick natural,
2.increase the magnet to ensure that the voice coil in the high power is still stable work.
3.Fully enclosed cast iron horn tray, can effectively isolate the subwoofer caused by the impact of airflow, so that the midrange speakers are not affected to play the true color.
Rated power: 40W
Max power :80W
DC resistance: about 5.2ohm
Impedance: 8OHM
Resonant frequency: 600Hz
Frequent frequency: F0-8500hz
Sensitivity: 89DB
Q value: 0.51Qts
Voice coil diameter: 25mm

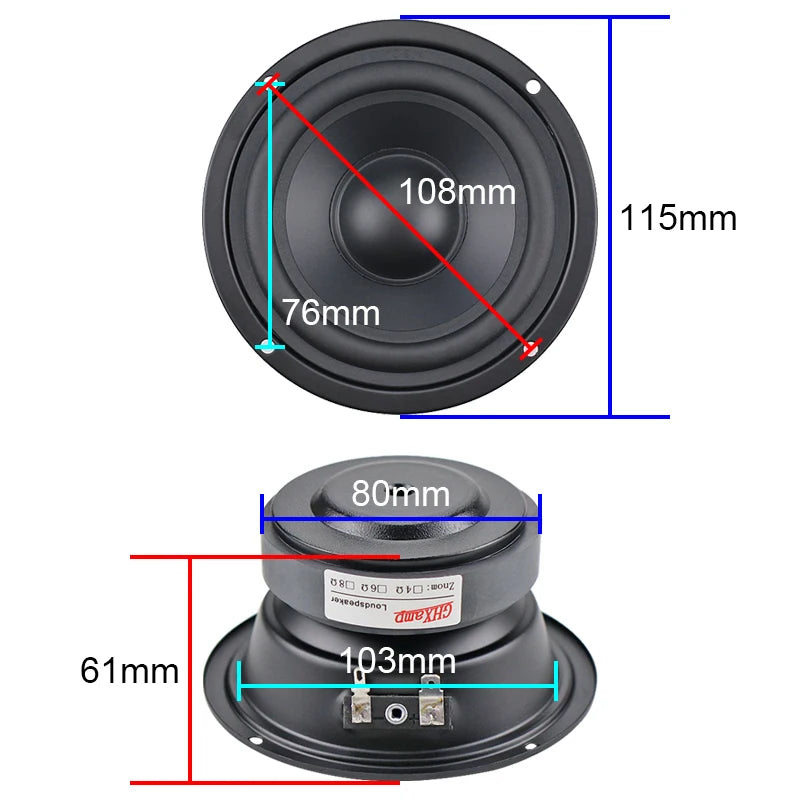

Magnet diameter: 80mm
Speaker diameter: 115MM
Opening Hole diameter: 96MM
Weight:0.65kg/pcs
Questions about DC impedance:
The impedance is dynamic and the DC resistance is static!
Impedance = resistance *1.2-1.4 times
The impedance rises with the high frequency, and it changes dynamically. If the DC has about 6 ohms, the dynamic impedance is about 8 ohms.
The conventional impedance is 5-6 ohms, and the DC resistance is 3-5 ohms.
The conventional impedance is 7-8 ohms, and the DC resistance is 5-6 ohms.
Tip: In special cases, Due to transportation, some magnets at the bottom of the speaker may be slightly scratched, but only a little, it will not affect the use at all, please pay attention.
Package included:
1pc Pure Midrange Speaker
