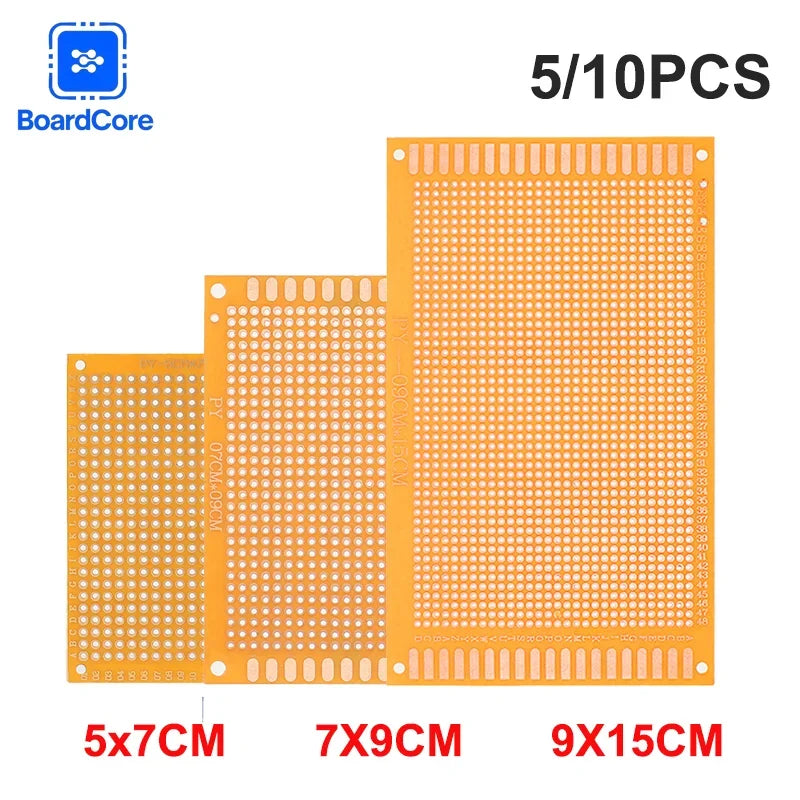

5/10pcs 5x7cm 7x9cm 9x15cm Universal PCB Board Yellow Single Sided PCB Printed Circuit Board for Arduino
5pcs / 5x7cm
€13,99
Angebotspreis
€13,99
Normaler Preis
Zu Produktinformationen springen
5/10pcs 5x7cm 7x9cm 9x15cm Universal PCB Board Yellow Single Sided PCB Printed Circuit Board for Arduino
€13,99
Angebotspreis
€13,99
Normaler Preis
Features:
100% high quality and brand new
1. High temperature resistance, good quality, not easy to oxidize, not easy to deform, widely used, easy to use
2. Easy to weld, real material.
Name: Single-sided PCB board

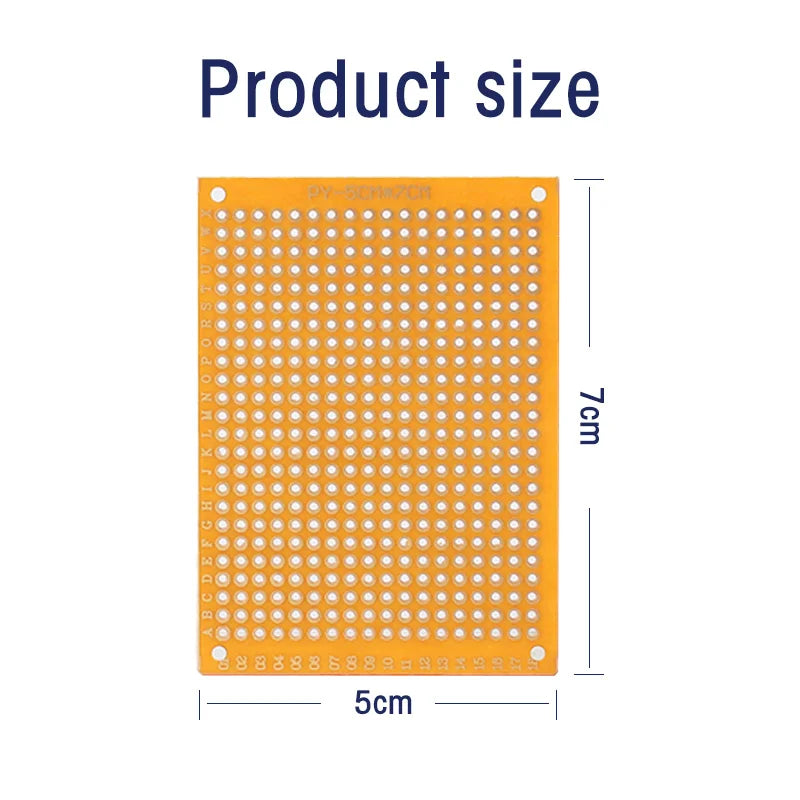

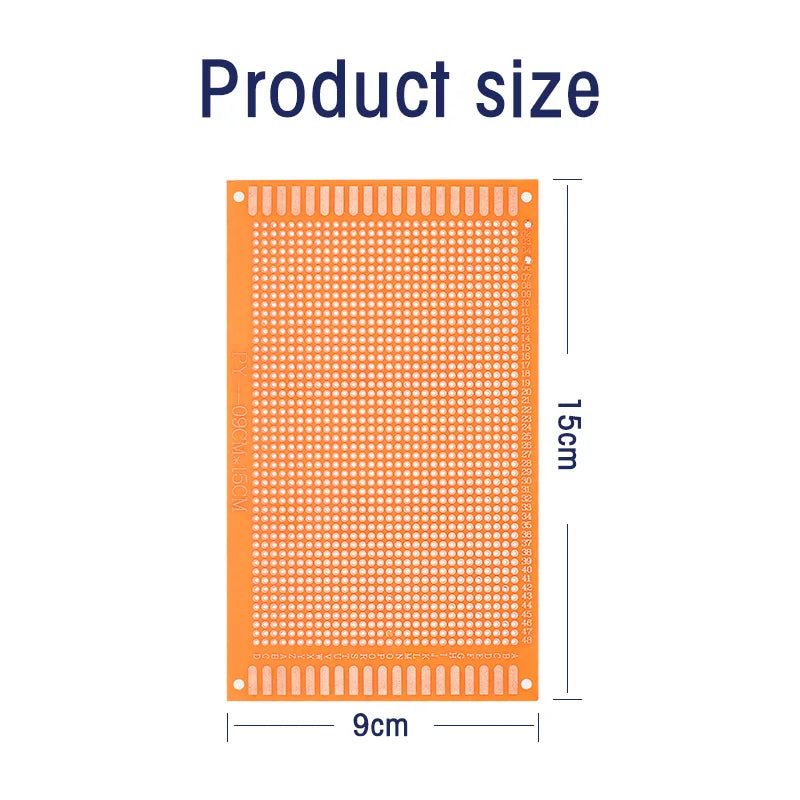

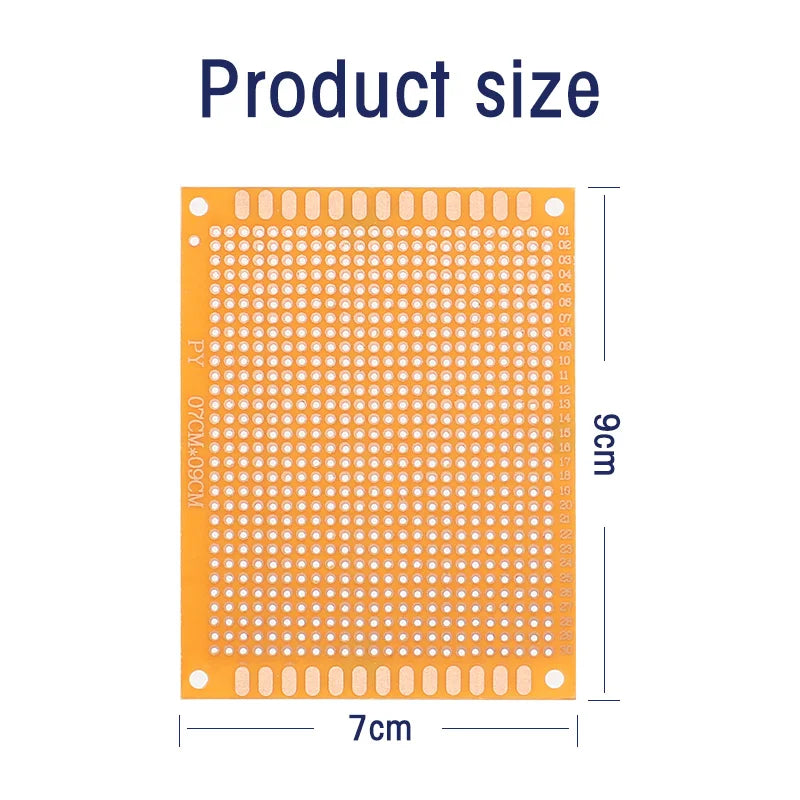

Size: 5*7CM/7*9CM/9*15CM
Color: yellow
Hole pitch: 2.54mm
Aperture: 1.0mm
Thickness: 1.6mm
100% high quality and brand new
1. High temperature resistance, good quality, not easy to oxidize, not easy to deform, widely used, easy to use
2. Easy to weld, real material.
Name: Single-sided PCB board
Size: 5*7CM/7*9CM/9*15CM
Color: yellow
Hole pitch: 2.54mm
Aperture: 1.0mm
Thickness: 1.6mm
Working temperature: 120 ° C
product description:
This is the general design of the board, and usually its board. It covers the standard IC pitch
(2.54MM) round independent pad, it seems that the whole board is full of holes,
So it is also called "hole plate". Compared with professional PCB printed circuit boards, hole plate
It has the characteristics of low cost, convenient use, and flexible expansion.
Alias: multi-purpose board, experimental board, learning board, orifice board, lattice board.
Product Features:
1. The development board is for learning, and the development board is for learners to design commonly used circuits. Learners do not need it
Make your own board without buying components and soldering transfers.
2. The development board is mostly related to the microprocessor, and the development board will be designed for various typical applications
Some typical programs that utilize learners for testing and learning.
3. The development board can effectively improve the learning efficiency and shorten the research and development progress.
Soldering skills:
1. Determine the preliminary layout of the power supply and ground wire.
2. Be good at using component pins.
3. Good at setting up the jump shot gun.
4. Be good at using pin row.
5. Cut off the copper foil when needed.
6. Utilize double panels.
packing list:
5PCS PCB universal board
